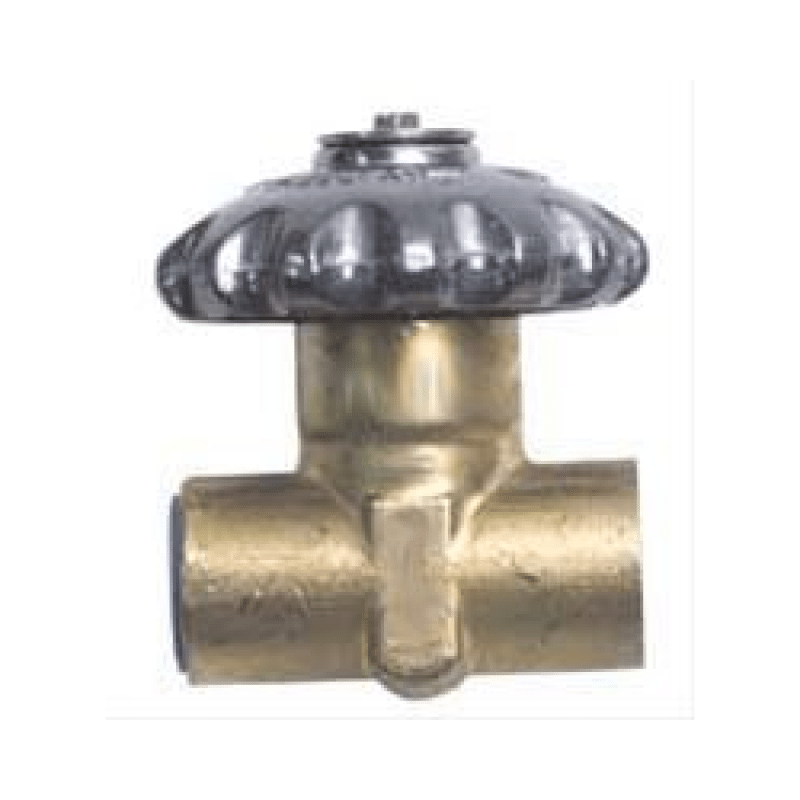

Dewar Valve Replacement
Application
These valves are designed for use on portable cryogenic cylinders and other in-line shut-off valve applications.
Features
• Spring loaded stem seal automatically adjusts for any gasket wear, eliminating the need to constantly retighten the packing nut.
• Non-rising stem and low profile allow the valve to be opened and closed in tight areas and still provide easy access.
• Unique pressure-sealed moisture barrier helps prevent freeze up at cryogenic temperatures.
• Conical swivel seal design helps prevent seat assembly from over torquing.
• Cleaned for liquid oxygen service.
• Maximum working pressure is 600 PSI.
• Working temperature range is -320° to + 165°.
These valves are designed for use on portable cryogenic cylinders and other in-line shut-off valve applications.
Features
• Spring loaded stem seal automatically adjusts for any gasket wear, eliminating the need to constantly retighten the packing nut.
• Non-rising stem and low profile allow the valve to be opened and closed in tight areas and still provide easy access.
• Unique pressure-sealed moisture barrier helps prevent freeze up at cryogenic temperatures.
• Conical swivel seal design helps prevent seat assembly from over torquing.
• Cleaned for liquid oxygen service.
• Maximum working pressure is 600 PSI.
• Working temperature range is -320° to + 165°.
